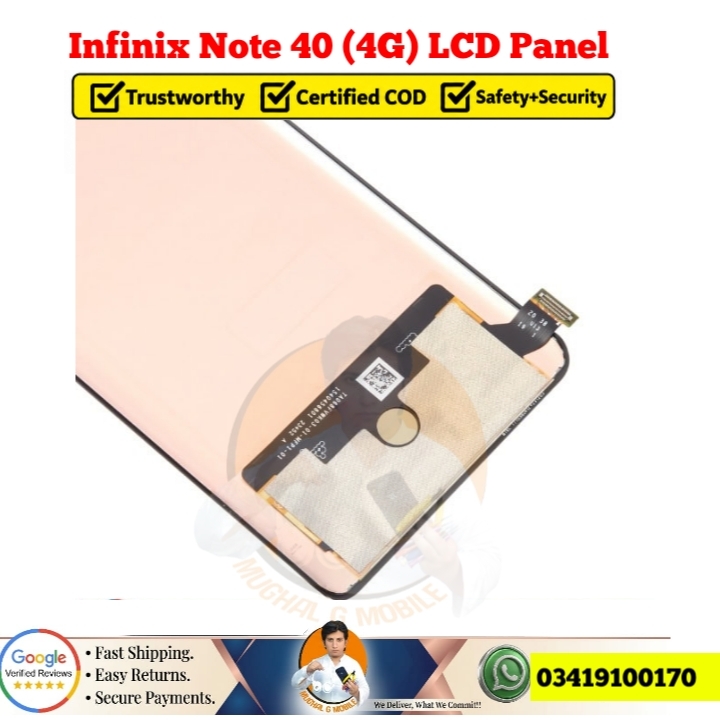

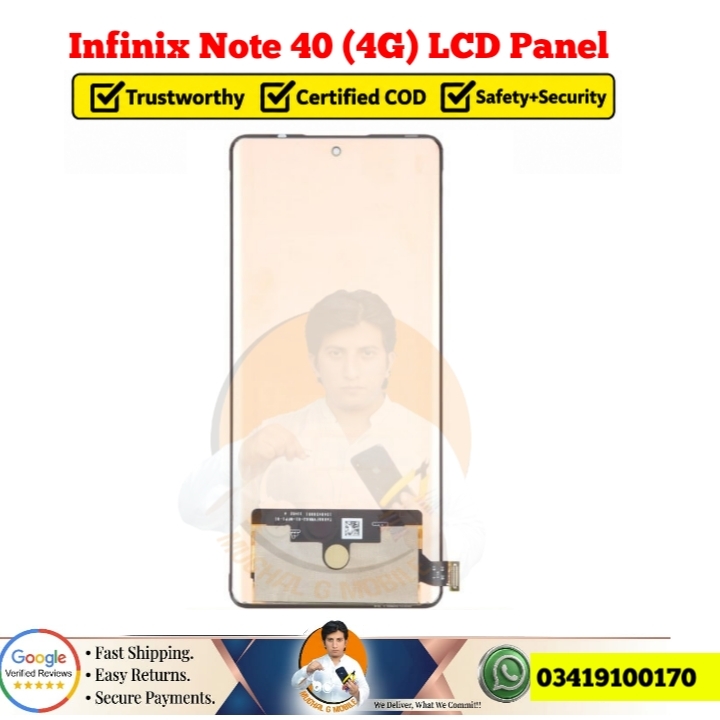

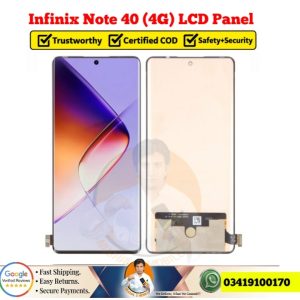

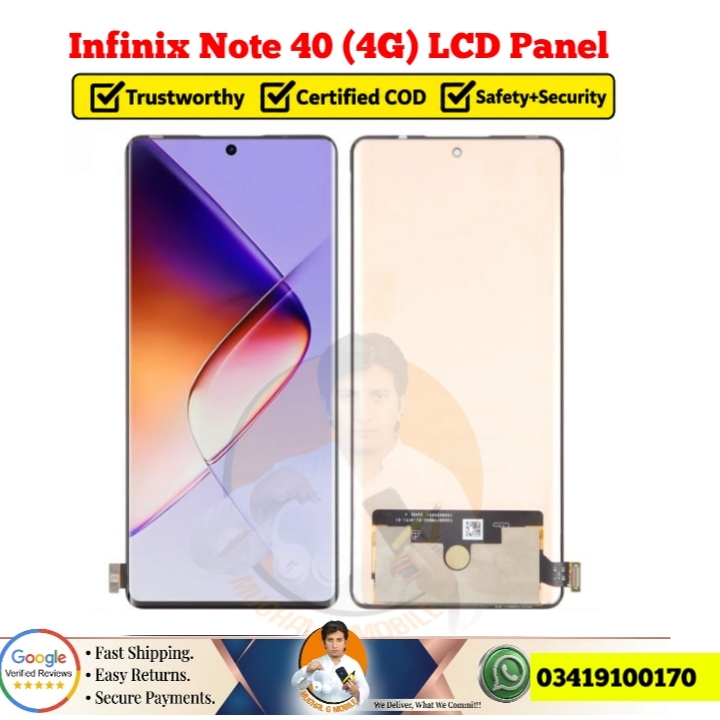

Infinix Note 40 4G Display Touch Screen Panel Combo (OLED / Original)

Infinix Note 40 4G Display Touch Screen Panel Combo (OLED / Original)

Bring your Infinix Note 40 4G back to original factory display performance with this premium flat AMOLED display panel combo replacement unit. Engineered specifically to match the 6.78-inch FHD+ 120Hz screen structure, this complete display module resolves cracked front glass, display line artifacts, touch dead zones, and black display spots in one clean repair process.

Key Features & Technical Specifications:

• Screen Size & Type: 6.78 Inches, Flat AMOLED / High-Grade Display Module

• Resolution: 2436 x 1080 pixels (Full HD+ at ~393 ppi density)

• Refresh Rate: 120Hz high refresh rate support for fluid scrolling and fast touch response

• Cutout Design: Precision center punch-hole camera alignment

• Touch Digitizer: High-sensitivity multi-touch capacitive digitizer layer

• Model Compatibility: Infinix Note 40 4G (X6853 / X6853B)

• Quality Assurance: Bench-tested on live test hardware for full brightness output, uniform color depth, and 100% touch calibration prior to dispatch.

Installation & Service Guidelines for Technicians:

• Dry Testing: Always connect the LCD flex ribbon cable directly to the board and check visual clarity and touch response before applying T7000/B7000 glue or removing protective films.

• Middle Frame Prep: Thoroughly scrape off all residual factory glue, dust, and micro-glass shards from the chassis frame to ensure a flat seal and avoid pressure-point display damage.

• Flex Cable Care: Do not fold or exert excessive pressure on the bottom display ribbon cable; micro-fractures in the trace lines can lead to vertical screen lines or touch failures.

•
