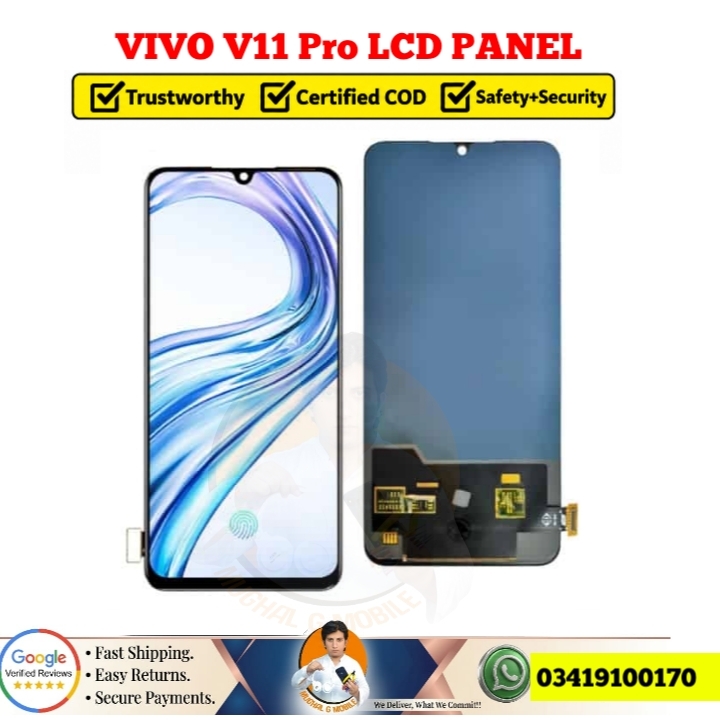

Vivo V11 Pro Display Touch Screen Panel Combo (OLED / Original)

Vivo V11 Pro Display Touch Screen Panel Combo (OLED / Original)

Bring your Vivo V11 Pro back to peak display quality with this high-grade display panel combo replacement unit. Engineered specifically to match the 6.41-inch FHD+ Super AMOLED screen structure, this complete module resolves cracked front glass, vertical line artifacts, black spots, and touch lag in one clean repair process.

Key Features & Technical Specifications:

• Screen Size & Type: 6.41 Inches, Super AMOLED / High-Grade OLED Module

• Resolution: 2340 x 1080 pixels (Full HD+ at ~402 ppi density)

• Cutout Design: Precision halo waterdrop notch camera cutout

• Touch Digitizer: High-sensitivity multi-touch capacitive digitizer layer

• Model Compatibility: Vivo V11 Pro (1804, V1804A, PD1813F)

• Quality Control: Bench-tested on live test boards for full brightness levels, color uniformities, and 100% touch calibration prior to dispatch.

Installation & Service Guidelines for Technicians:

• Dry Testing: Always connect the display flex ribbon cable directly to the board and check display visuals and touch response before applying T7000/B7000 glue or stripping protective films.

• Frame Cleaning: Scrape off all residual factory glue, dust, and micro-glass shards from the housing frame to ensure a flush seal and avoid pressure spots on the AMOLED sheet.

• Flex Cable Care: Do not sharply fold or press heavily on the bottom display ribbon cable; damaged trace lines can cause vertical display lines or touch dead zones.

•
