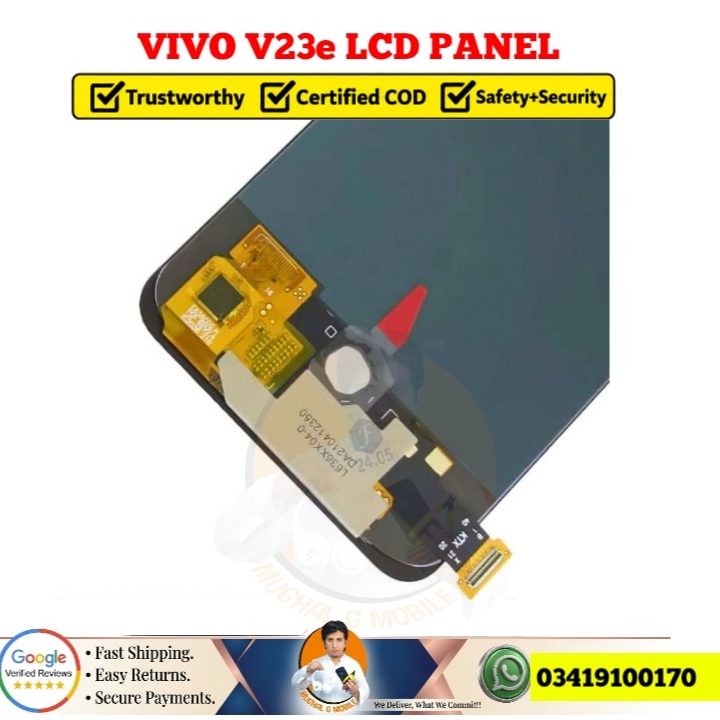

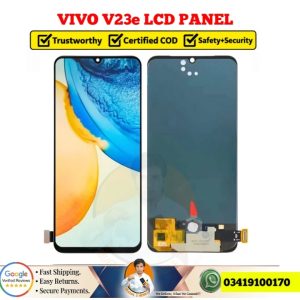

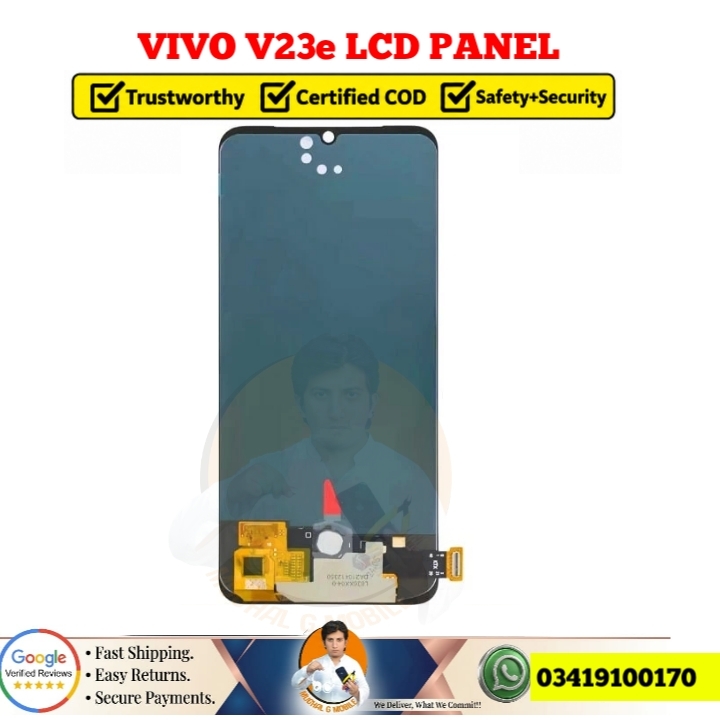

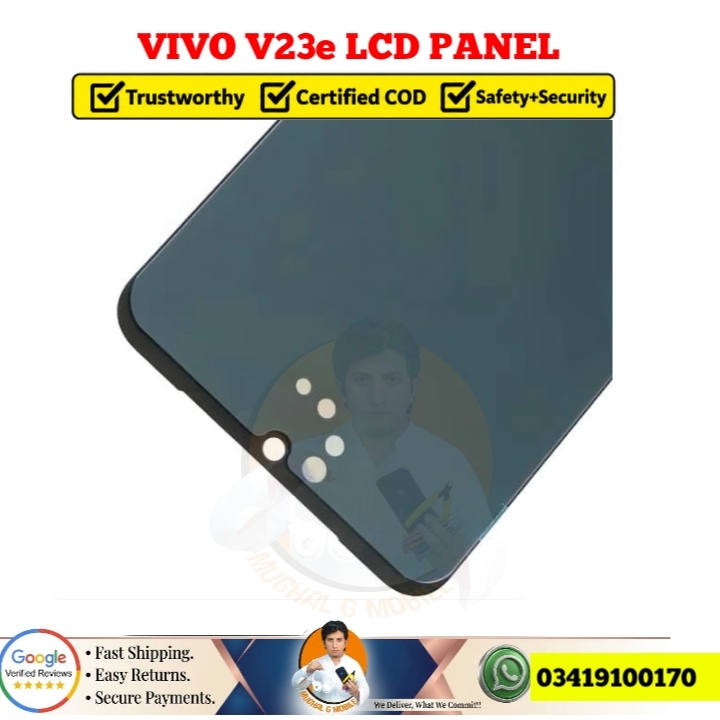

Vivo V23e Display Touch Screen Panel Combo (OLED / Original)

Vivo V23e Display Touch Screen Panel Combo (OLED / Original)

Bring your Vivo V23e back to original display standards with this premium display panel combo replacement unit. Engineered specifically to fit the 6.44-inch FHD+ AMOLED screen structure, this complete module resolves cracked front glass, display line artifacts, black spots, and touch lag in one clean repair process.

Key Features & Technical Specifications:

• Screen Size & Type: 6.44 Inches, Super AMOLED / High-Grade OLED Module

• Resolution: 2400 x 1080 pixels (Full HD+ at ~409 ppi density)

• Cutout Design: Precision waterdrop notch camera alignment

• Touch Digitizer: High-sensitivity multi-touch capacitive digitizer layer

• Model Compatibility: Vivo V23e (V2116 – 4G / V2126 – 5G)

• Quality Control: Bench-tested on live test boards for full brightness output, uniform color balance, and 100% touch calibration prior to dispatch.

Installation & Service Guidelines for Technicians:

• Dry Testing: Always connect the LCD flex ribbon cable directly to the board and test display visuals and touch response before applying T7000/B7000 glue or stripping protective films.

• Middle Frame Prep: Scrape off all residual factory glue, dust, and micro-glass shards from the chassis frame to ensure a flat seal and prevent pressure-point display damage.

• Flex Cable Safety: Do not fold or exert excessive force on the lower display ribbon cable; micro-fractures in the trace lines can lead to vertical screen lines or touch dead zones.
